The Modular
Camera box and printer box as two separate pieces, for easy transport and tool-free setup.
Built for operators who move fast between events. The camera box and the dedicated DNP printer box ship, travel, and set up as two separate pieces, so each stays better protected in transit and there is no disassembly required at the venue. Available in light oak or dark mahogany.
$5,495
Plus $300-500 shipping depending on destination
| Wood | Solid ash (custom wood or paint available) |
| Size | Camera box: 20"H x 17"W x 12"D (50 x 43 x 28 cm), tripod adjustable 48-69in (120-175 cm). Printer box: 14"H x 15"W x 16"D (34 x 37 x 39 cm), fixed 40in (100 cm) stand. Shipping case: 23"H x 33"W x 21"D (58 x 82 x 53 cm). |
| Weight | Camera box 37 lb (17 kg), printer box 37 lb (17 kg), assembly components 26 lb (12 kg), case 44 lb (20 kg), total shipping weight 146 lb (66 kg) |
| Capacity | ~1 min 30 sec per session, 60-90 prints per hour |
| Camera | Canon EOS R100 mirrorless, continuous AC power adapter |
| Printer | DNP DS-RX1HS dye-sub printer, in a dedicated matching printer box. Prints 4x6in and 2x6in. |
| Display | 14" BOE HD capacitive touchscreen |
| Control system | Intel Core i7 mini PC, Windows pre-installed |
| Lighting | Integrated studio ring flash, dimmable LED fill |
| Software | DSLRbooth, Darkroom Booth, Breeze, Sparkbooth |
| Power | AC 110-240V universal input, 50/60Hz |
| Mounting | Modular two-box design, tool-free setup, standard tripod |
| Stand | Adjustable tripod included, camera box 48-69in (120-175 cm); printer box on a fixed 40in (100 cm) stand. |
| Lead time, sea | 45 days |
| Lead time, air | 10 days |
| Warranty | 1 year on camera, printer, touchscreen, and PC |
| Ships | Fitted flight case, setup guide included |
What's included
- 1x Camera Box: touchscreen, Canon EOS R100 camera, mini PC, and light module
- 1x dedicated Printer Box, built to house the DNP DS-RX1HS
- 1x DNP DS-RX1HS dye-sublimation photo printer
- 1x power supply and signal interconnect kit
- 1x user manual and setup guide
Why this model
Two-box modular design: camera box and printer box ship and set up separately
Tool-free setup, protects components better in transit
14" touchscreen, Intel Core i7 mini PC
Choose your wood and color

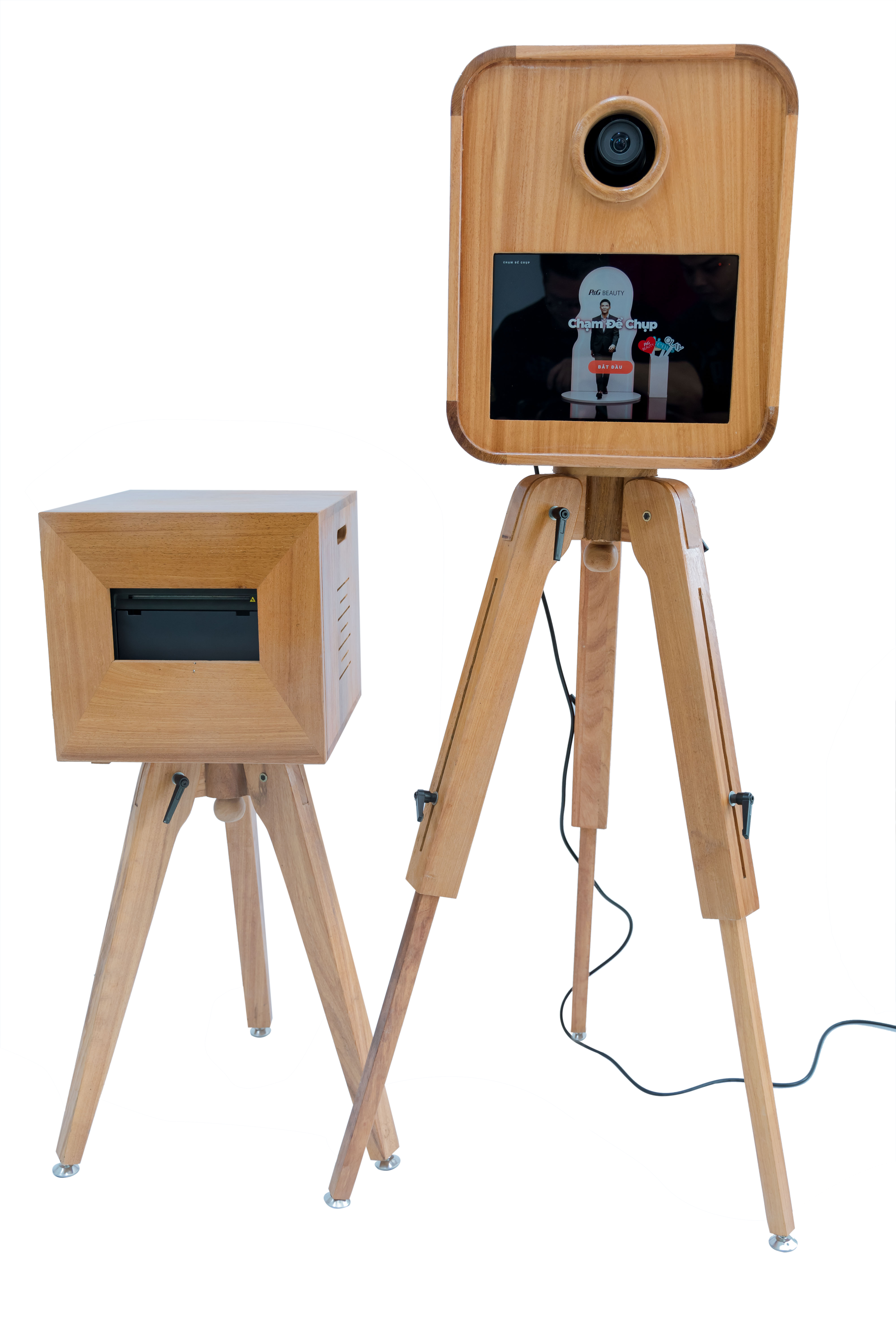

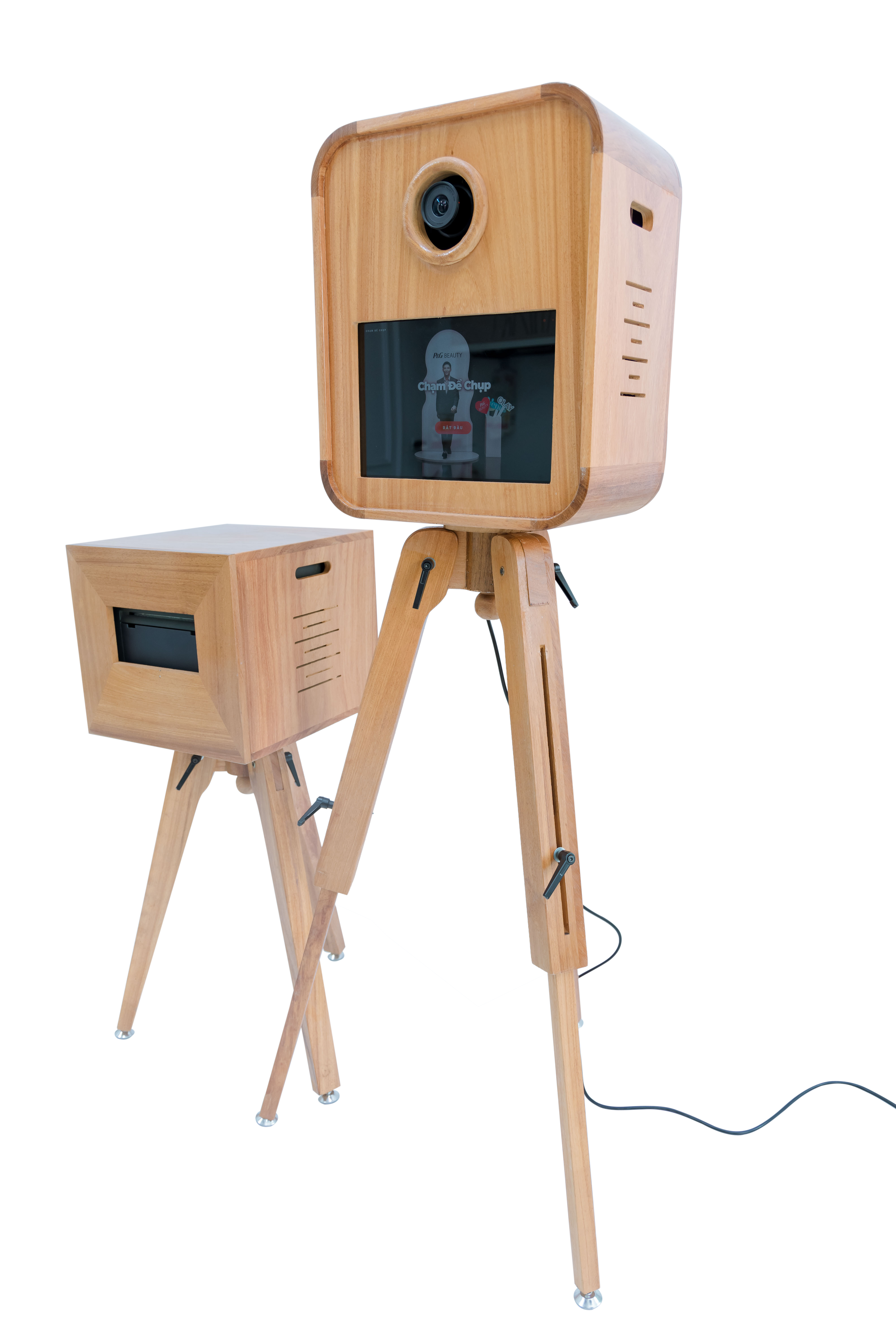

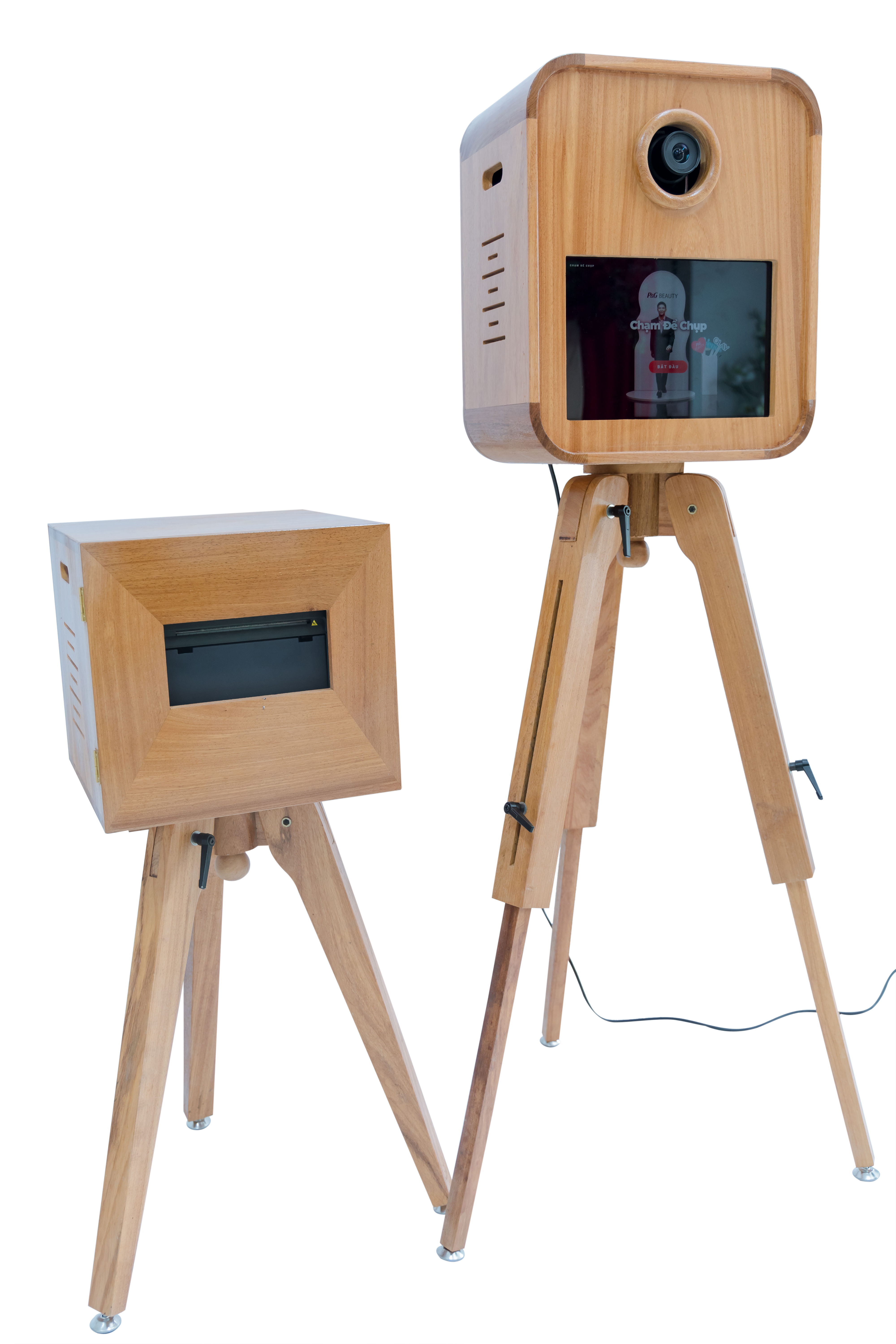

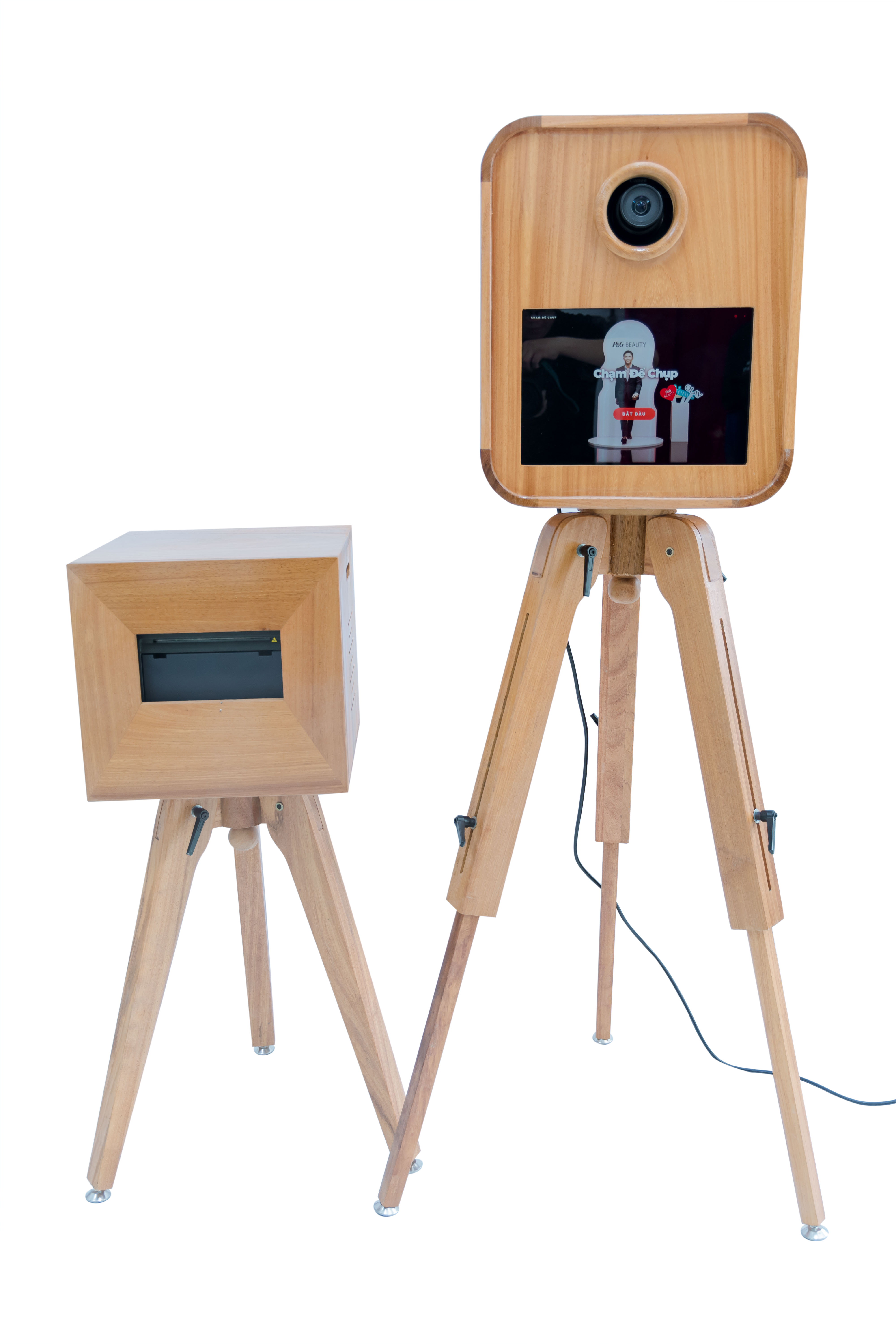

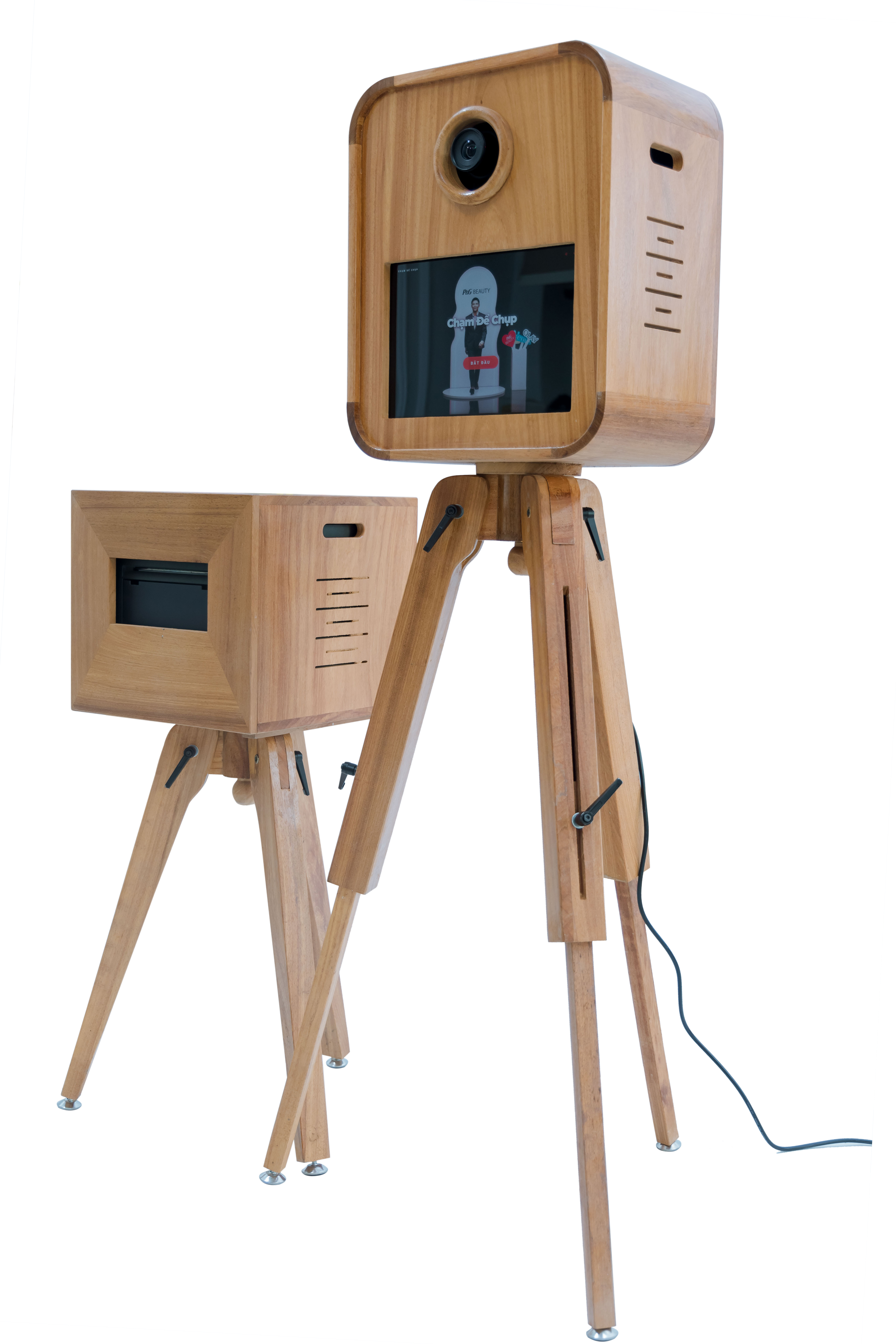

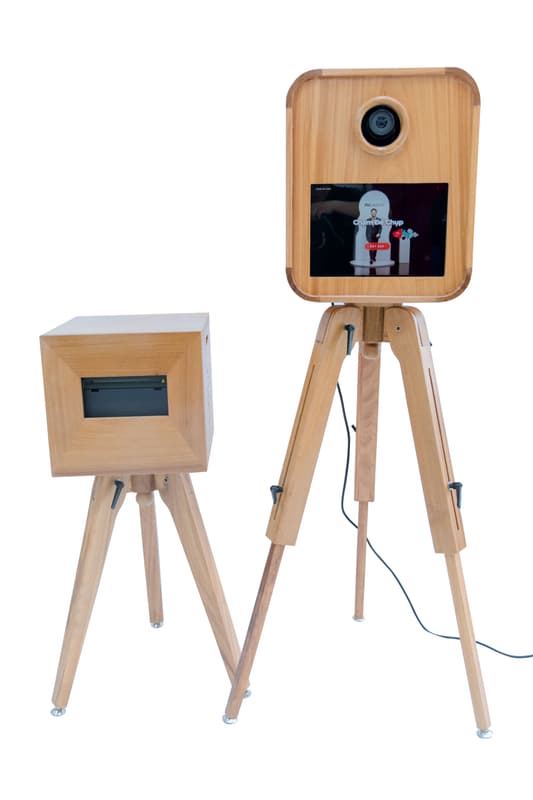

Light oak (standard)

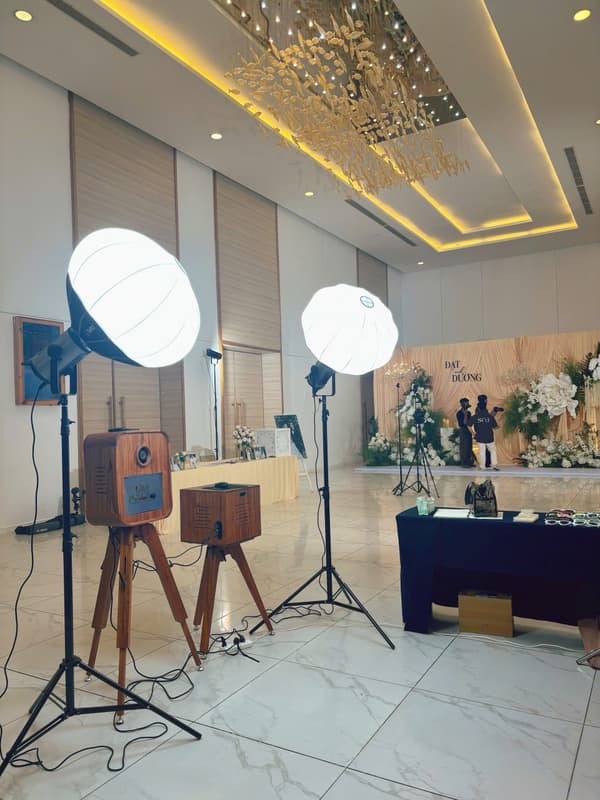

Shown in most live event photos above

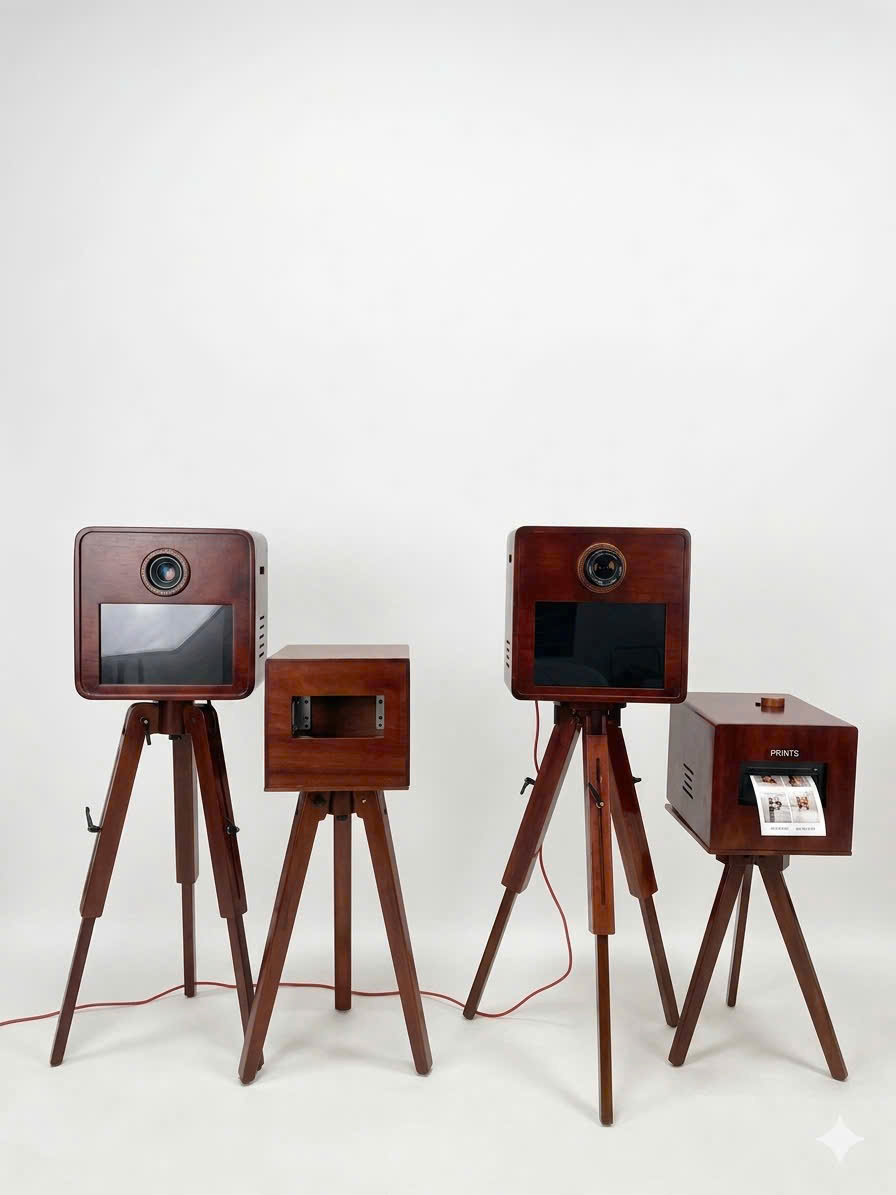

Dark mahogany
Shown in the event photo in the gallery
Custom wood or paint
+$300-1,000/unit, see Custom Builds
All finishes ship in the same fitted flight case. Ask about a specific wood or paint match on the custom build form.
